Reinforced Virgin Material Nylon PA 66 Rail Guide Plate Rail Fastening Parts

Name: Reinforced Virgin Material Nylon PA 66 Rail Guide Plate Rail Fastening Parts
Brand: ZhongYue
Price: 1 USD

China Reinforced Virgin Material Nylon PA 66 Rail Guide Plate Rail Fastening Parts wholesale

Brand Name : ZhongYue

Model Number : Based on drawing

Certification : ISO9001:2015

Place of Origin : China

MOQ : 10000pcs

Price : Negociable

Payment Terms : T/T, 30% in advance

Supply Ability : 500000 pcs per month

Delivery Time : 10-20 days after payment

Packaging Details : Double-layer woven bag and wooden pallet

Product : Rail guide plate

Color : Black, white, blue, yellow etc.

Material : PA66

OEM : Supporting OEM

Application : On rail 38kg, 43kg

Advantage : Durable and competitive price

Contact Now

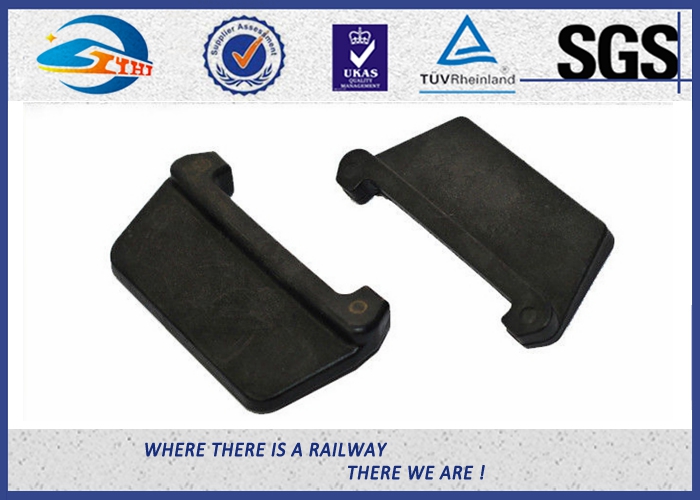

Reinforced Virgin Material Nylon PA 66 Rail Guide Plate

General Introduction of Angle Guide Plate

Angle guide plate is used under tension clamp / SKL / to keep the rail in lateral position and the lateral forces

are passed on to the concrete body by the means of Angle Guide plate. Advantageous as pre assemble at

sleeper factory required. These are made of engineered polymers known as Poly Amide / Nylon 66 with glass

reinforcement for durability and strength. Also providing high electric insulation.Track Adjustment of +/10mm

can be made through Angle guide plate WFP, therefore different angle guide plate can be used for different

rail profile with same sleeper and same gauge.

For example

1.	Wfp 14k 17
2.	Wfp 14k 14.5
3.	Wfp 14k 12
4.	Wfp 14k 9.5
5.	Wfp 14k 7

Specifications

Brand	Zhongyue
Name	Insulating pads
Type	For rail UIC54, UIC60, 50kg rail, 60kg rail,BS80lbs,BS100lbs, and size as ordered
Material	Reinforced Nylon 66 (PA66)
Technical spec.	Density:1.3-1.45g/cm3 Tensile strength: ≥170Mpa Elongation: ≤4.4% Bending Strength: ≥250Mpa Impact Strength(No gap): ≥80KJ/m2 Melting point:250-270°C Insulation resistance:≥1×108Ω Glass fiber content:30-35% Hardness:≥110HRR
Color	Black, blue, yellow, green or other color

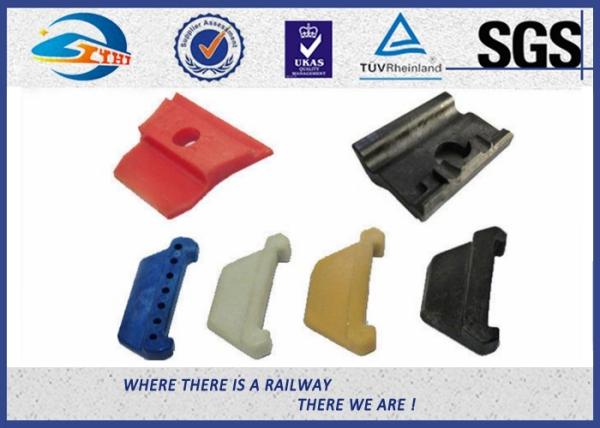

Product Photos for Reference

Reinforced Virgin Material Nylon PA 66 Rail Guide Plate Rail Fastening Parts

Factory

Reinforced Virgin Material Nylon PA 66 Rail Guide Plate Rail Fastening Parts

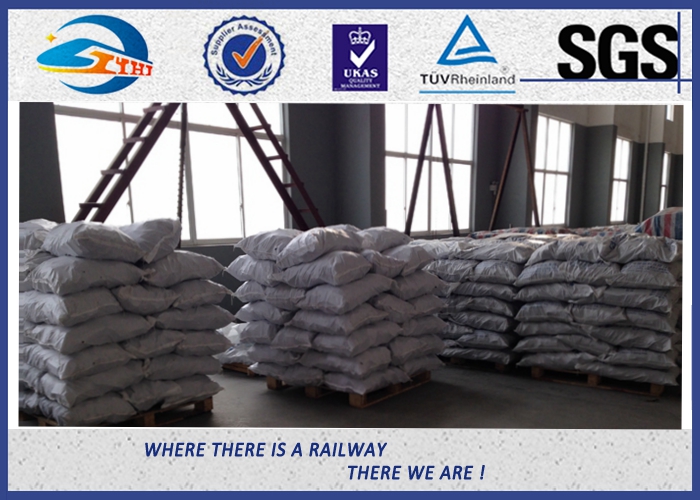

Warehouse

Reinforced Virgin Material Nylon PA 66 Rail Guide Plate Rail Fastening Parts

Certificate
