Reinforced Virgin Material Nylon Rail Guide Plate / Angle Guide Plate EVA HDPE Rubber Part
Specifications:

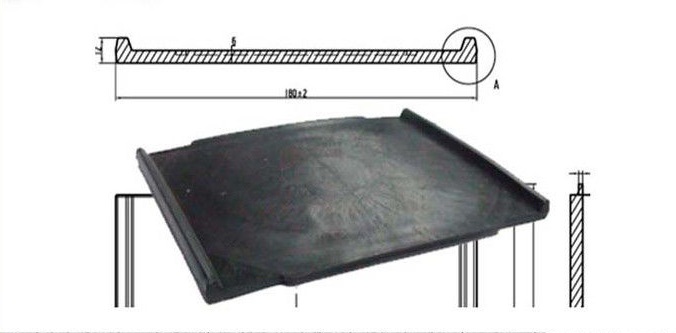

The rail pad, originally called sole plate, is used when rail is attached to concrete, rather than timber, ties or sleepers. Rail pads function to reduce fatigue cracking of the concrete ties, believed to be driven by impact and vibration from the passing train. It is thought that the rail pads act in two ways: they diminish shock or impact loads by providing compliance, and they reduce (by isolation and perhaps by damping) resonant vibrations excited in the concrete ties (lowest resonant frequency about 200 Hz) and accommodate vibration deflections in the rail sections between the ties (about 0.12mm amplitude, 1000 Hz).
| Brand | ZHONGYUE |
| Name | Railway supplies EVA steel plate reinforce rubber pads for rails |
| Type | For rail UIC54, UIC60, BS80lbs,BS100lbs, and size as ordered |
| Material | HDPE | EVA | Rubber |
| Technical spec. | Density: 0.95-0.98g/cm3 Tensile strength: ≥19Mpa Elongation: >80% Melting point: 170-190℃ Insulation resistance: ≥1×1010Ω Hardness:≥98A | Density:0.95-0.98g/cm3 Tensile strength:≥15Mpa Elongation: >500% Melting point: 170-190℃ Insulation resistance:≥1×1010Ω Hardness: ≥90A | Hardness:75±5A Tensile strength: ≥12.5N/mm² Elongation: ≥250% Operating temperature: -25℃~100℃ |
| Color | Black |

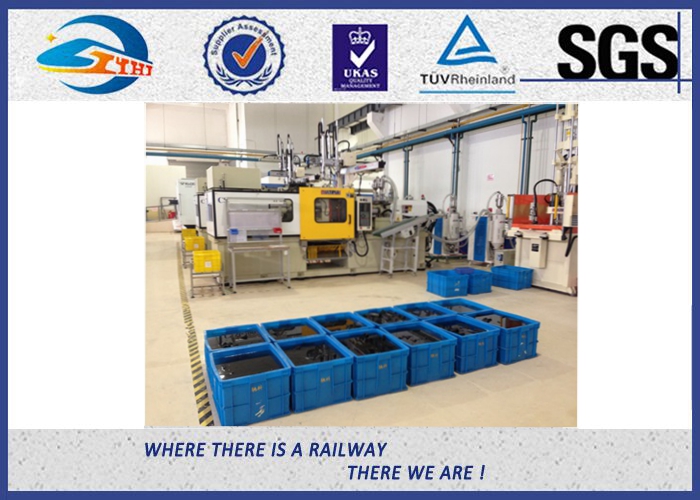

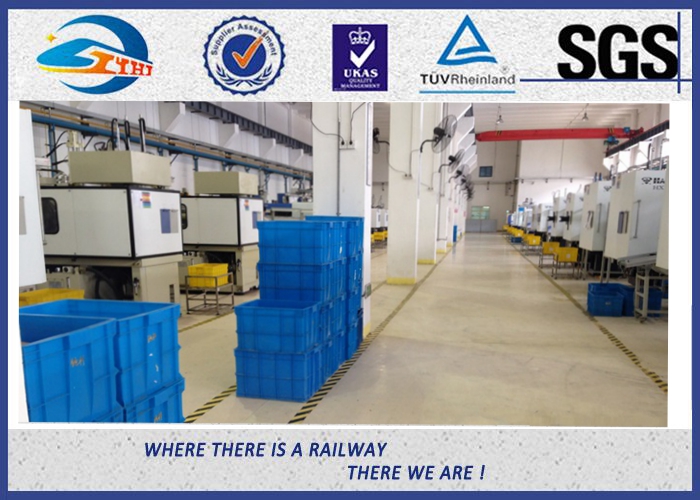

Production Process
IF YOU NEED MORE PRODUCT INFORMATION PLEASE CONTACT ME.
Contact: Janet Jiang zy15@zyrail.com

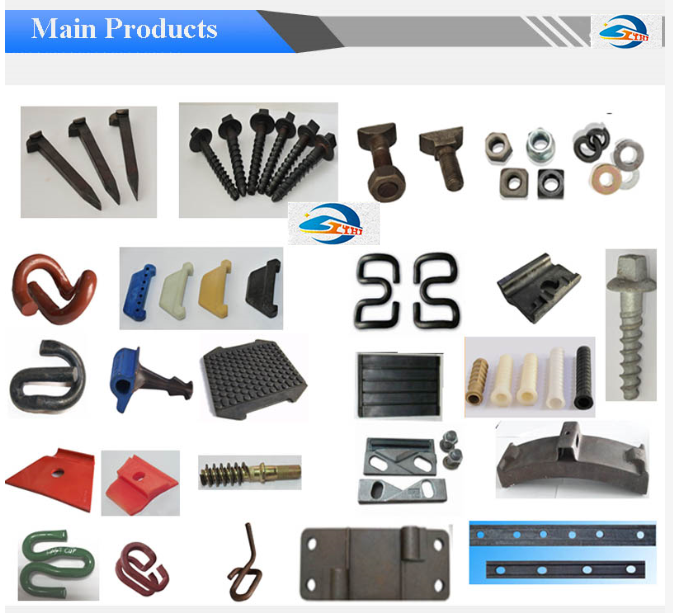

Our main products:
Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.
About us
Founded in 2003, Suyu is the largest railway fastener manufacturer in China. We are committed to providing our global customers with high quality and economically priced railway fastener products, including our rail sleeper screw, rail spike, railway bolt, and elastic rail clip.
With certificates SGS, TUV, ISO9001-2008, we supply our products, to famous companies such as VAE, and Hilti. In Suyu Group, quality control management is always a priority at Suyu. We welcome costomers all around the world to visit our factory and our office.

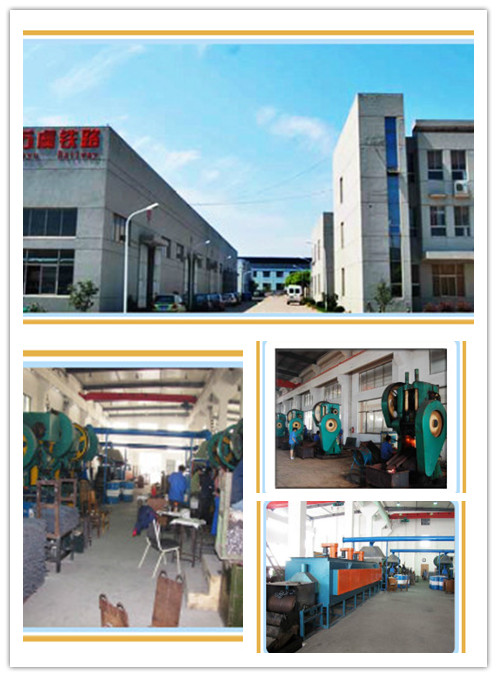

Welcome to Visit Our Factory!
