Black Plastic And Rubber Part Railway HDPE And PA66 Dowel For Screw

Suzhou Zhongyue Railway Material Co.,Ltd.
Contact Now

Black Plastic And Rubber Part Railway HDPE And PA66 Dowel For Screw

Brand Name : Zhongyue

Model Number : Plastic dowel

Certification : ISO9001:2015

Place of Origin : China

MOQ : 10000pcs

Price : Negociable

Payment Terms : T/T, 30% in advance

Supply Ability : 2000T per month

Delivery Time : 15-30days after order confirmation

Packaging Details : Export Carton or as customer requirement

Material : Plastic

Dimensions (L x W x H) (mm) : according to drawing or samples

QC : ISO,TUV

Specification : According to drawings

application : Plastic Dowel

Warranty : 3 years

Customized : According to drawings

Contact Now

Black Plastic And Rubber Part Railway HDPE And PA66 Dowel For Screw

HDPE

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g/

0.95-0.98

0.95

2

Tensile strength

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting point

°C

170-190

190

5

Insulation resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)

PA66 : Nylon 66.69%, glass fiber 30%, other 1%

No.

Technique parameter

Unit

Technical requirement

Value

1

Density

g

1.3—1.45

1.45

2

Tensile strength

Mpa

≥170

178

3

Elongation

%

≤4.4

4.0

4

Bending Strength

Mpa

≥250

290

5

Impact Strength(No gap)

KJ/m2

≥80

85

6

Melting point

°C

250°C—270

270

7

Insulation resistance

Ω

≥1×108

5×108

8

Glass fiber content

%

30—35

35

9

Hardness

HRR

≥110

118

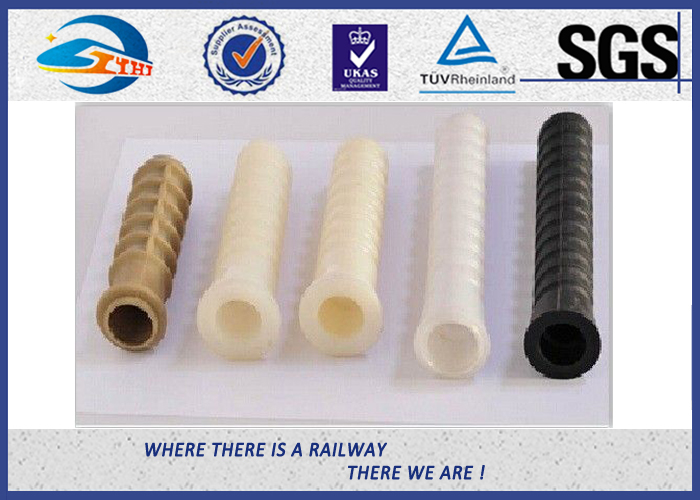

Samples:

Black Plastic And Rubber Part Railway HDPE And PA66 Dowel For Screw

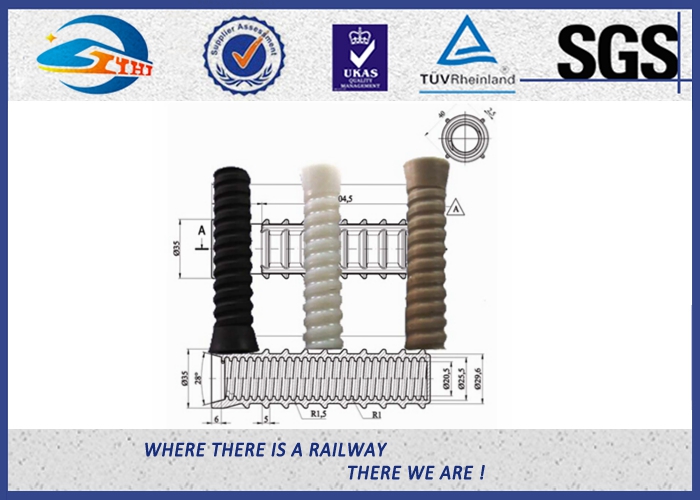

Drawing:

Black Plastic And Rubber Part Railway HDPE And PA66 Dowel For Screw

Package:

Black Plastic And Rubber Part Railway HDPE And PA66 Dowel For Screw

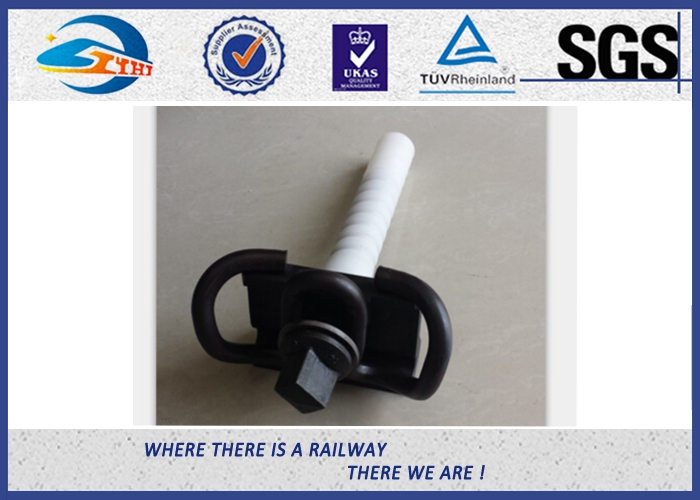

Application:

Pressed in concrete sleeper with sleeper screws to fix the rail.

Black Plastic And Rubber Part Railway HDPE And PA66 Dowel For Screw
